Call API

The Call API node connects your Agent to any external API endpoint. Use this step to retrieve data, trigger external services, enrich Agent inputs, or integrate with your internal systems and tools.

This node supports both GET and POST requests, optional authentication, and (for POST requests) request bodies in JSON format.

When to use this node

Use Call API for tasks such as:

• Pulling data from third-party tools, CRMs, CMS systems, or analytics platforms

• Triggering external automations or Agents

• Fetching structured data for use in downstream LLM steps

• Enriching Agent execution with custom business logic hosted elsewhere

• Integrating Profound Agents with internal APIs or microservices

Node configuration

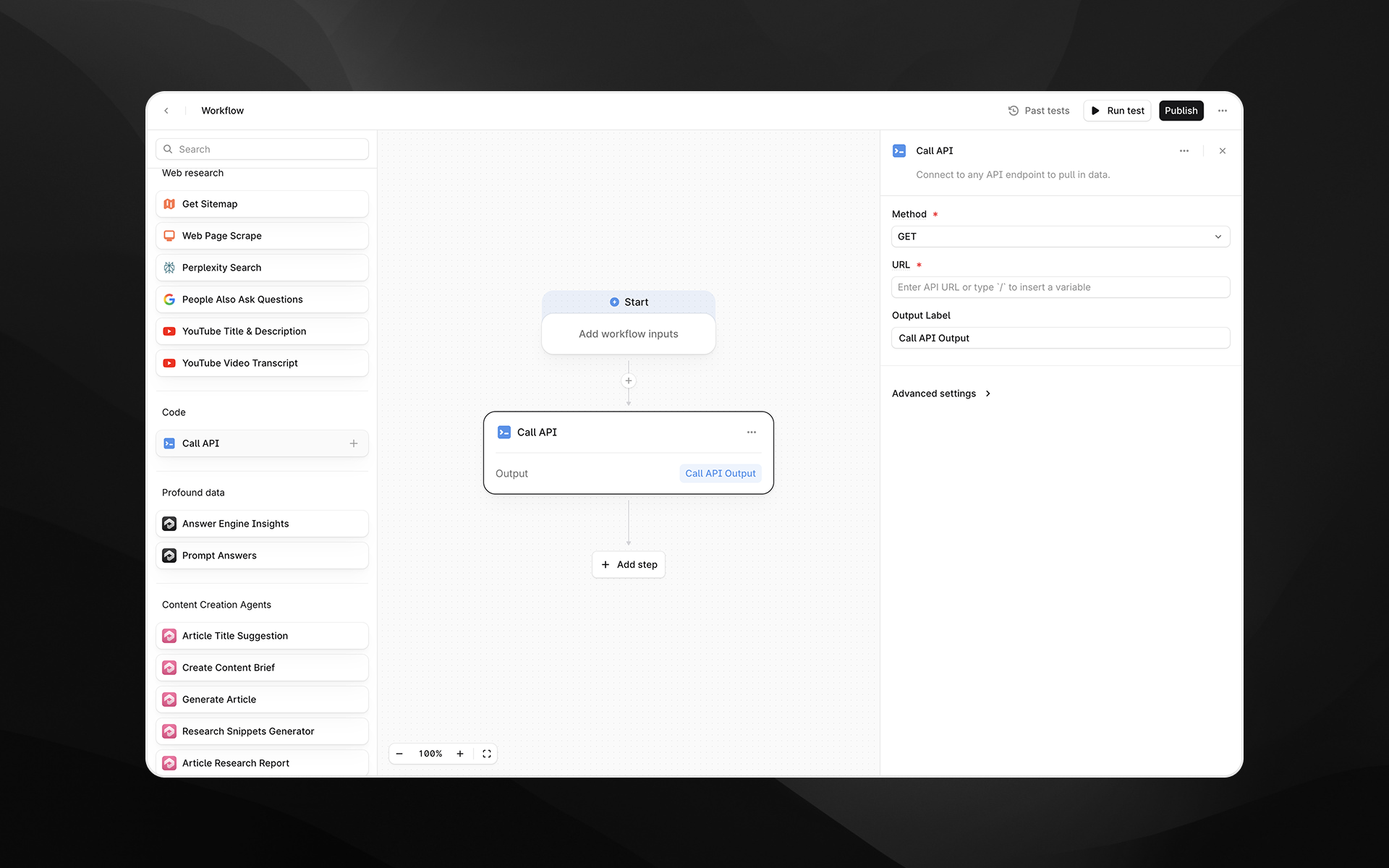

Selecting the Call API node opens its configuration panel on the right side of the Agent Builder.

Method (required)

Choose the HTTP method for the request:

• GET – Retrieve data from an API endpoint

• POST – Send data to an endpoint; allows including a request body

Choose the method that matches the API you are calling.

URL (required)

Enter the full API endpoint URL.

You can:

• Paste a static URL

• Dynamically insert variables using /, referencing inputs or earlier Agent steps

Examples:

• https://api.example.com/users/{{user_id}}

• https://internal.mycompany.com/search?q={{topic}}

Additional configuration for POST requests

If the method is POST, additional fields appear.

Request Body

Enter the JSON payload to send in the request. This is required for POST requests.

Example payload:

{
  "userId": 1234
  "action": "create",
  "payload": {
    "firstName": "Jack",
    "email":"jack@example.com"
  }
}

Variables can be inserted using /.

Content Type (required for POST)

Choose the content type for the request body:

• None

• Application/Json

Most APIs expect Application/Json.

Output Label

Provide a descriptive label for the API response. This becomes the variable name that downstream nodes reference.

Examples:

• api_response

• user_record

• external_data

Advanced settings

Select Advanced settings to configure authentication for the request.
Authentication is required for APIs that are not publicly accessible.

Authentication Type (required)

Choose the authentication mechanism:

• None – No authentication

• Basic – Username and password

• Bearer – Bearer token

• API Key – Custom API key header

Each option exposes different required fields.

Basic Authentication

Fields:

• Username

• Password

Bearer Authentication

Fields:

• Bearer Token

API Key Authentication

Fields:

• Header Name

• API Key Value

Example:

• Header Name: X-API-Key

• API Key Value: <your_key_here>

Use the field names expected by the API you are calling.

Output

The Call API node returns the full response body from the API as text. This output can be passed into:

• LLM steps for parsing, extraction, or summarization

• Logic and transformation nodes

• Downstream API calls

• Any step requiring structured or semi-structured external data

The output may be JSON, HTML, plain text, or any content type returned by the API.

Example usage

1. Fetch user profile data

1. Add a Call API node with:

   • Method: GET

   • URL: https://api.example.com/users/{{user_id}}

   • Output Label: user_profile

2. Pass {{user_profile}} into an LLM step for analysis or transformation.

2. Submit Agent data to an external service

1. Add a Call API node with:

   • Method: POST

   • URL: https://hooks.example.com/events

   • Content Type: Application/Json

Request Body:

{
  "transcript": "{{video_transcript}}",
  "summary": "{{summary}}"
}

• Output Label: event_response

3. Use authenticated APIs

1. Under Advanced settings, choose the appropriate authentication type.

2. Provide credentials (e.g., Bearer Token or API Key).

3. Use GET or POST as needed to retrieve secure data.

Best practices

• Always verify the API’s expected method, headers, payload structure, and authentication requirements before configuring the node.

• Use variables to dynamically build URLs or request bodies for more flexible Agents.

• When sending JSON, ensure proper formatting—malformed JSON will cause the request to fail.

• Keep output labels descriptive, especially when chaining multiple API calls.

Troubleshooting

The API returns an error

Check:

• URL correctness

• Required query parameters

• Authentication credentials

• JSON body structure (for POST)

The response is empty or unexpected

APIs may return HTML error pages or wrapper objects. Use a Prompt LLM step to interpret or extract relevant portions.

Variables aren’t resolving

Insert variables by typing / and selecting from the variable picker.
